9 minute read

Our vector database of choice is the OpenSearch service. We initially used AWS’s serverless instance to power our Retrieval-Augmented Generation (RAG) applications. However, slow ingestion speeds led us to migrate to a managed cluster setup.

Update: July 22, 2025

We received the root cause analysis from AWS support. They confirmed that the issue was indeed caused by the simultaneous scaling and security changes. The domain was stuck in a modifying state due to simultaneous configuration changes: enabling both remote store and FGAC. They confirmed that this combination can cause a red index status for one of the system indices. The issue was resolved by deleting the affected system index and retrying the process. They said they will be implementing fixes to prevent similar incidents in the future.

This was a huge relief as it confirmed our suspicions and provided us with a clear path forward. We will be implementing the recommended changes in our future deployments.

“Until then, we recommend following this sequence: Enable FGAC first and then proceed with remote store migration if needed.” ~ AWS Support

This is honestly a good recommendation and I should have followed it with or without the AWS support confirmation. During any migrations or major changes, it is always a good idea to follow a sequence of steps that are known to work. This will help you avoid any unexpected issues and ensure that your changes are applied successfully. I am glad that the AWS support team was able to get us out of this situation quickly and efficiently with no data loss.

Update: July 5, 2025

AWS support confirmed that the our cluster has fully recovered and is now in a healthy state. They also confirmed that the migration was now fully completed and all indices are accessible. We were able to confirm the same by visually looking at the cluster status. We now needed to test the cluster and make a decision if we wanted to point our pipelines to this cluster or not.

Waiting for AWS support to tell us if they can sync the two clusters for us - our old one and the new one. If they can, we will be able to point our pipelines to the new cluster without losing any data. If not, we will have to reingest the data from S3 again. I also needed approvals from my Director if we wanted to point our pipelines back to the old cluster or not.

So we wait…

Update: July 4, 2025

AWS support identified a stuck snapshot blocking shard relocation and requested approval to perform a rolling restart of data nodes in the blue environment. After getting our approval for potential outages (since we had a backup domain which was now being used actively), they successfully restarted the nodes and confirmed the cluster returned to a healthy green state with all indices accessible.

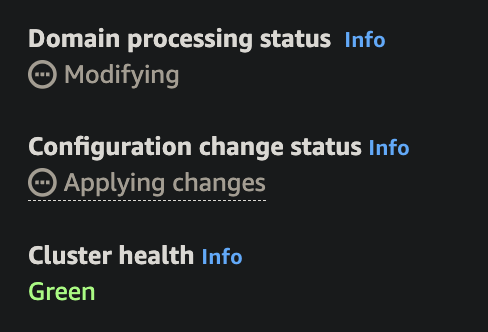

Upon viewing the cluster status, I confirmed that the cluster, although in the green state, was still trying to apply some changes.

Cluster Status

TL;DR

  • Incident Date: July 3, 2025
  • Duration: ~5 hours
  • Impact: Production OpenSearch cluster became inaccessible due to simultaneous scaling and security changes.
  • Speculations: Without knowing for sure or AWS confirming, I will be mentioning if something is a pure speculation from my end. I have asked AWS for a root cause analysis and will update this post once I receive it.

How It Started

During the week of June 30th, we noticed extreme JVM pressure and high CPU utilization in our Test environment. Our setup had:

  • 5 shards per index (default)
  • 3 nodes with 1 dedicated master node
  • Warm storage enabled
  • Document ingestion rate: ~100 docs/sec

Our initial configuration looked like this:

cluster_config = {
  instance_count           = 3
  dedicated_master_enabled = true
  dedicated_master_type    = "c7g.large.search"
  instance_type            = "r7g.large.search"
  warm_count               = 3
  warm_enabled             = true
  warm_type                = "ultrawarm1.large.search"
  cold_storage_options = {
    enabled = false
  }
  zone_awareness_config = {
    availability_zone_count = 3
  }
  zone_awareness_enabled = true
}
ebs_options = {
  ebs_enabled = true
  iops        = 3000
  throughput  = 250
  volume_type = "gp3"
  volume_size = 512
}
encrypt_at_rest = {
  enabled = true
}

This setup, while memory-optimized, was not ready for our load tests (~100 documents in short bursts). JVM pressure spiked and we needed to scale — fast.

Scaling Up

I rolled out a new configuration on July 1st, increasing node count, instance size, and enabling cold storage:

cluster_config = {
  instance_count           = 9
  dedicated_master_enabled = true
  dedicated_master_count   = 3
  dedicated_master_type    = "r7g.large.search"
  instance_type            = "or2.2xlarge.search"
  warm_count               = 3
  warm_enabled             = true
  warm_type                = "ultrawarm1.large.search"
  cold_storage_options = {
    enabled = true
  }
  zone_awareness_config = {
    availability_zone_count = 3
  }
  zone_awareness_enabled = true
}
ebs_options = {
  ebs_enabled = true
  iops        = 3000
  throughput  = 250
  volume_type = "gp3"
  volume_size = 1024
}

This resulted in a major performance improvement: JVM pressure dropped, CPU stabilized, and ingestion was smooth.

The Setup in Production

Confident in the new setup, I decided to apply the same configuration to production on July 3rd. However, there was one (SPECULATION: there might be more than one difference) critical difference:

  • In test, we applied configuration and security changes separately.
  • In production, we applied both at the same time.

Why Security Changes?

We had observed random index creations in test and wanted to enable AUDIT_LOGS to track user activity. That required enabling advanced security, which in turn required a master user. Advanced security also provides features like fine-grained access control (FGAC) and internal user database management.

advanced_security_options = {
  enabled                        = true
  internal_user_database_enabled = false
  anonymous_auth_enabled         = false
  master_user_options = {
    master_user_arn = "arn:aws:iam::xxxxxxxxxx:role/user-role"
  }
}

In the test environment, this change caused a temporary “RED” cluster state for ~10 minutes, which reverted to “GREEN” successfully. Per AWS docs:

“The change triggers a blue/green deployment during which the cluster health becomes red, but all cluster operations remain unaffected.”
— AWS Docs on FGAC

So, I felt confident rolling the same changes into prod.

The Deployment – What Went Wrong?

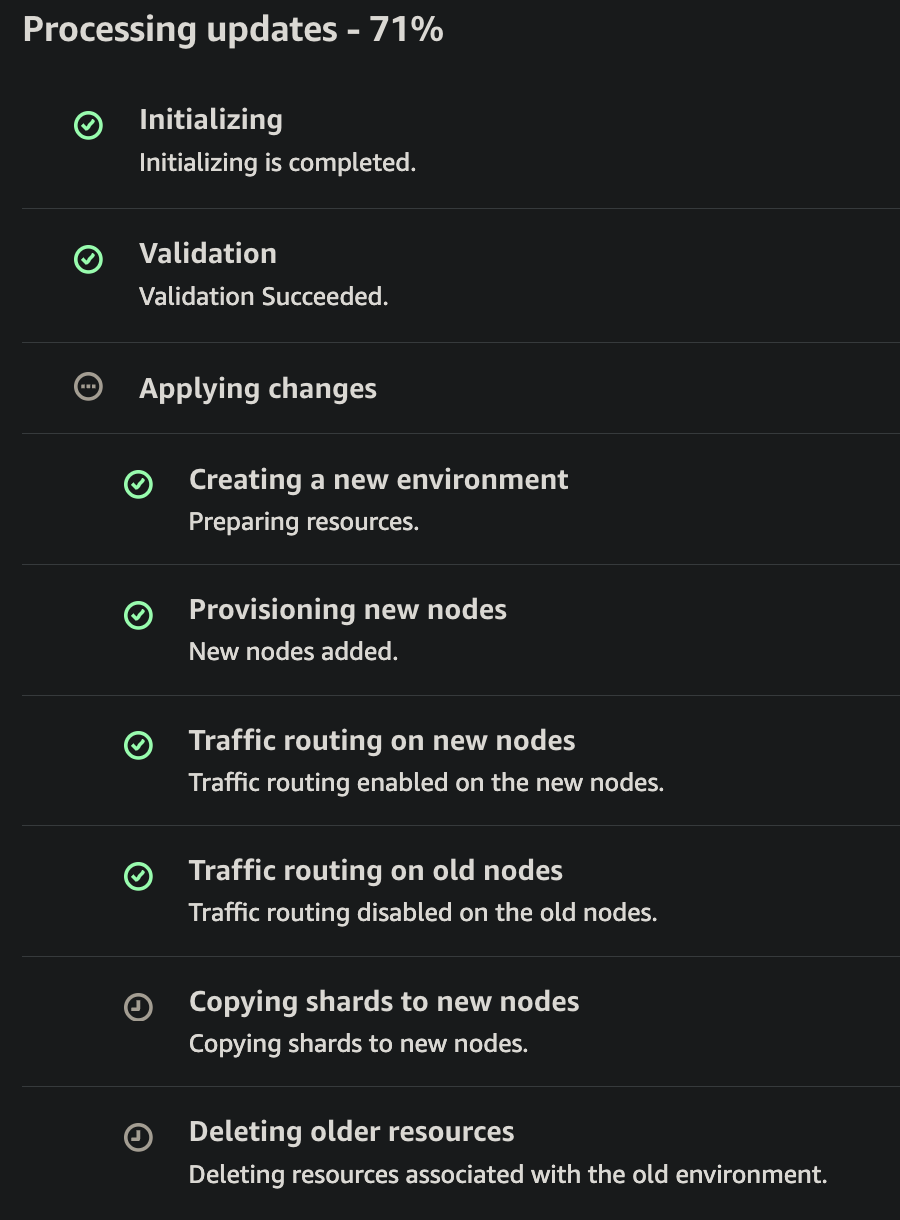

Once approved, we deployed changes in prod — both the infrastructure scale-up and advanced security enablement — simultaneously. This was the beginning of the outage (SPECULATION: we do not know for sure if this was the beginning). Below is an image of our cluster migration status during the deployment. Cluster Migration Status

It showed that new nodes had been added and traffic routing was successful. It had now reached the point where it was supposed to copy the shards to the new nodes. This is when we started noticing issues. The cluster status turned to “RED”. We were unable to access the cluster and the OpenSearch dashboard was not loading. Any index or search operation was failing with a “503 Service Unavailable” error.

A quick google search led me to this forum post on AWS. https://repost.aws/knowledge-center/opensearch-domain-stuck-processing The post basically mentioned that the cluster was stuck in a state where it was trying to copy the shards to the new nodes, but it was unable to do so. It asked us to monitor the current migration of the shard with the following API call:

GET /DOMAIN_ENDPOINT/_cat/recovery?active_only=true

We hit this error:

{
  "error": {
    "type": "security_exception",
    "reason": "OpenSearch Security not initialized for indices:monitor/recovery"
  },
  "status": 503
}

That’s when I realized: the security plugin hadn’t initialized properly.

I attempted master-user access via IAM — still failed.

This was around 3:00 pm.

AWS Support Weighs In

At 6:15 pm I contacted AWS support. They were able to confirm that the cluster was stuck in a state where it was trying to copy the shards to the new nodes, but it was unable to do so. They initially mentioned that this is a normal behavior and the cluster would eventually recover. However, after waiting for a few hours, the cluster was still in the same state and we were unable to access it.

AWS confirmed:

  • The cluster was stuck during shard copying to the new nodes.
  • Specifically, the .opendistro_security index — which stores security config — could not be assigned or migrated.
{
  "index": ".opendistro_security",
  "shard": 0,
  "primary": false,
  "current_state": "unassigned",
  "unassigned_info": {
    "reason": "INDEX_CREATED",
    "at": "2025-07-03T21:27:11.736Z"
  }
}

This was the index that was causing the issue (SPECULATION: but semi confirmed by aws on the chime call). The support team tried to reassign the shard, but it was still failing with the same error. This was an internal AWS index that is used to store the security configuration for the cluster. It was not able to migrate to the new nodes and was causing the cluster to be stuck in a state where it was unable to access any indices.

No Way Out

I had a few options at this point. I could either wait for the cluster to recover on its own, or abandon that cluster and create a new one. I decided to wait for a few more hours, but the cluster was still in the same state. I was unable to access any indices or perform any operations on the cluster. I confirmed that all data nodes were migrated and in active state.

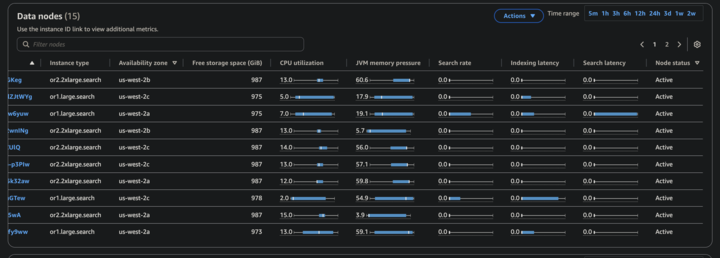

Cluster Nodes

I explored every workaround:

  • Reassign shards manually? Blocked.
  • Cancel update? Not allowed mid-migration.
  • Delete the domain? Domain was locked in Processing.
  • Restore from snapshot? AWS’s default 1-hour snapshots are not user-restorable.

At this point, I was stuck in limbo.

Then we found this AWS forum post from 2 years ago describing exactly the same scenario. The same .opendistro_security index was unassignable. Unfortunately, AWS support didn’t accept it as conclusive evidence and continued investigating.

Our Recovery Plan

With production deadlocked, we took matters into our own hands:

  • Spun up a new domain, same configuration — excluding advanced security.
  • Reingested from S3, our source of truth.
  • Redirected traffic to the new cluster.

Within a few hours, ingestion was back at 100 docs/sec. The new cluster held up well.

Meanwhile, our old cluster was still at 71% migration and remained unusable but now with status yellow. AWS confirmed that shard migration was partially retriggered — but that didn’t help us regain access.

Downtime Summary

  • Total outage: ~5 hours
  • User impact: Minimal (due to long weekend)
  • Fallback: Temporary reroute to serverless instance for select users

Lessons Learned

1. Don’t Combine Major Changes

Scaling and security updates should be rolled out in separate phases — especially in production. Always perform a dry run to test the configuration first.

2. Be Cautious with Advanced Security

Once enabled, you can’t disable advanced security. Enable it only when you’re confident it won’t block critical operations.

3. Snapshots Matter

Relying on AWS’s default hourly snapshots isn’t enough. Set up manual, restorable snapshots. You cannot restore from AWS’s default snapshots directly, so ensure you have a backup strategy that allows you to restore data when needed.

4. Monitoring is Key

Track migrations closely. If a cluster update takes more than 90 minutes, escalate immediately.

5. Have a Rollback Plan

Always have a tested fallback path (like our S3 ingestion) to recover quickly in case of failure.

Final Thoughts

We’re still awaiting AWS’s official root cause analysis. But we were lucky: Our fallback pipelines kept this from becoming a full-blown production disaster.

I hope this post helps others avoid the trap we fell into.

– Siddharth
